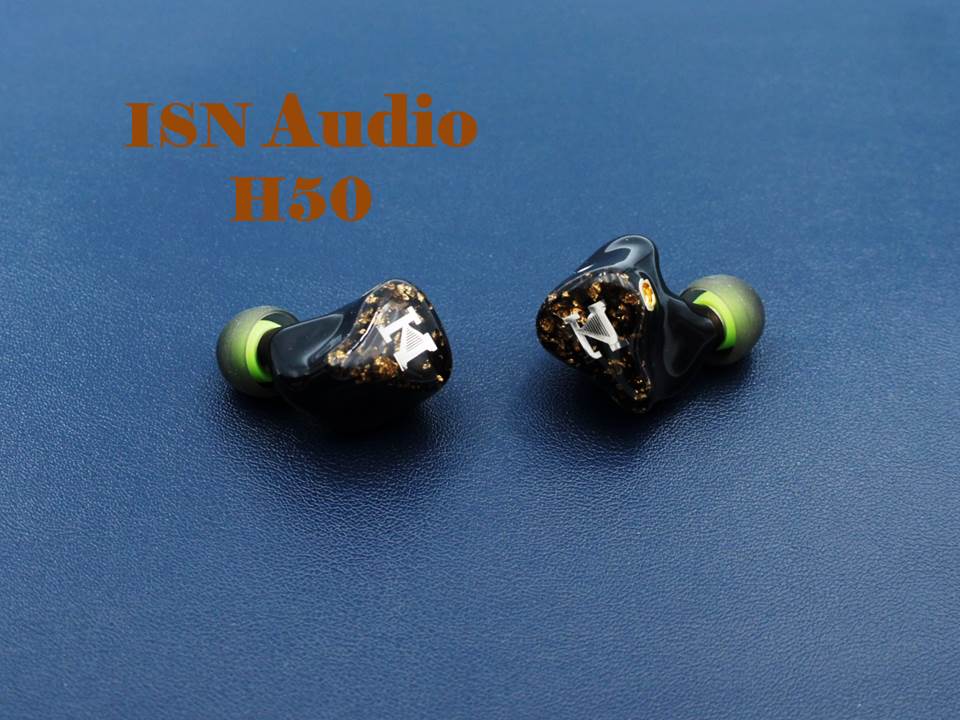

ISN H50

Descripition

  • Handmade resin shell
  • Stainless steel nozzle
  • 4 Balanced Armature+1 Dynamic Driver Hybrid MMCX Detachable Audiophile IEMS
  • 2BA for high frequency,2BA for middle frequency
  • 10mm composite diaphragm Dynamic driver for bass
  • The composite diaphragm is a product made of high-pressure polyethylene as the main raw material and extruded and and formed into bubbles at a high temperature of about 230 degrees. It is a new type of plastic with light texture, good transparency, non-toxic and odorless,It has good shock absorption, impact resistance, heat sealability, enhances the rigidity and elasticity of low and middle frequencies, and improves the sensitivity of the speaker!

Specification

  • Model: H50
  • Driver: 4 Balanced Armature +1 Dynamic driver
  • 4BA: 2BA for high frequency,2BA for middle frequency
  • 1 Dynamic: 10mm composite diaphragm Dynamic driver for bass
  • Impedance: 25ohm
  • Sensitivity: 108dB
  • Frequency response: 20-20kHz
  • 3 channels 3-way crossover
  • Connector: MMCX
  • Plug: Gold-plated
  • Cable length: 1.2M
H50 Graph
